What’s The Right Concrete Mix Ratio For Foundations?
Search for the right concrete mix ratio, and you get a different answer from every source. One says 1:2:4, another insists on 1:2:3, and a third skips ratios entirely to talk about GEN3 and RC25. None of them tells you which applies to the trench in your garden.
The reason it matters is straightforward. Footings carry the weight of everything built on top of them, and the proportions of cement, sand, and aggregate determine the strength of the concrete once it cures. Get the balance wrong, and the footing sets weaker than the wall above it needs, cracking or settling under a load it was never able to hold. Fixing that later means breaking out cured concrete and pouring again, so the ratio is worth settling before the mixer starts.

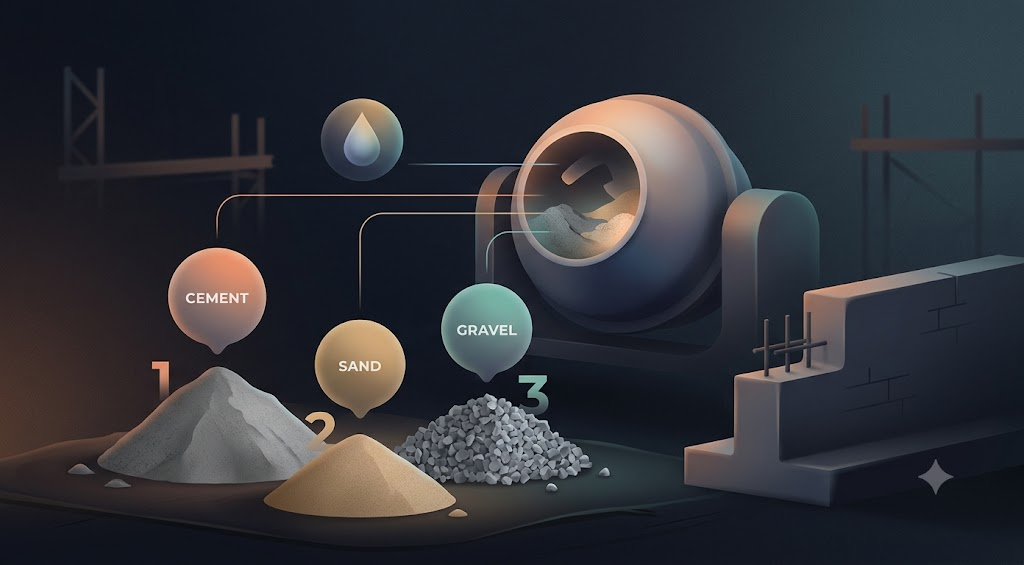

What the Numbers in a Concrete Mix Ratio Mean
The three figures are parts by volume, measured with the same bucket, shovel, or barrow throughout:
- The first number is cement: Ordinary Portland cement, the grey powder binding everything together
- The second is sharp sand: Coarse and gritty, never the soft builders’ sand used for mortar
- The third is coarse aggregate: Gravel or crushed stone, usually 20mm for footings
A 1:2:3 mix therefore means one bucket of cement, two of sharp sand, and three of gravel. Water sits outside the ratio, though it affects the result as much as any of the three.
Recommended Concrete Mix Ratios by Project Type
The right ratio is decided by one thing above all: the load the concrete will carry. A fence post and a two-storey wall place completely different demands on a footing. A single all-purpose mix either wastes cement on the light jobs or falls short on the heavy ones, so it pays to match the proportions to the work.
Two conditions apply throughout. Every ratio below assumes normal, sulphate-free ground. And a structural engineer or Building Control officer has the final say on the grade your job needs.
Garden and Light Structures: 1:2:4
The lightest footings hold little more than their own weight and a low wall, so they call for the least cement of any option here.
- Ratio: 1 part cement, 2 parts sharp sand, 4 parts coarse aggregate
- Strength: around C20
- Suits: garden and boundary walls, fence post pads, shed and greenhouse bases, and light paths
- Ready-mix equivalent: GEN1 or GEN2
Anything richer on work this light simply buys strength the structure will never use. A tall wall, or one holding back soil, is the exception and belongs a step up at 1:2:3.
Domestic Building and Extensions: 1:2:3
This is the workhorse behind most houses, and the proportion the majority of home projects should reach for.
- Ratio: 1 part cement, 2 parts sharp sand, 3 parts coarse aggregate
- Strength: around C25
- Suits: strip footings and trench fill under single and two-storey walls, extensions, garage bases, and porch footings
- Ready-mix equivalent: GEN3 (C20/25)
Adding that extra measure of cement lifts strength by roughly a third and binds the concrete better, keeping stone and paste together as it drops into the trench. That combination is why C25 is the floor most engineers accept beneath a house wall. Steel reinforcement, unreliable soil, or a heavy upper storey takes the job up to 1:1.5:3.
Reinforced Work and Difficult Ground: 1:1.5:3
Once steel enters the equation, or the earth beneath cannot be trusted, the blend turns richer and denser. A 1:1.5:3 proportion reaches C30 to C35, and it earns that density two ways.
- Shielding the steel: A tight, low-permeability blend keeps water off the reinforcement bars and stops them rusting, which would otherwise expand and crack the concrete from within.
- Spanning weak spots: Clay, made ground, and soft patches lean on the added strength to carry what the soil alone cannot.
Consistency slips on a hand-mixed batch at this level, which makes a designated grade like RC25 or RC28 the surer route. A specified exposure class or durability clause takes the work beyond a standard grade and onto an engineer-designed one.
Commercial and Industrial Groundworks: 1:1:2
The most demanding bases sit under machinery, structural columns, and non-stop loading. Here the blend is almost always engineered rather than picked off a chart.
- Ratio: 1 part cement, 1 part sharp sand, 2 parts coarse aggregate
- Strength: C40 and above
- Suits: heavily loaded column bases, industrial floor slabs, and commercial foundations under sustained weight
- Ready-mix equivalent: RC40 or an engineer-designed mix
Projects on this scale arrive with structural calculations, exposure classes, and testing that no off-the-shelf proportion can satisfy. Treat 1:1:2 as the opening figure only. Whatever the drawings specify is what goes into the pour, and Building Control will expect documented proof of the grade delivered.
Quick Reference
| Project | Ratio | Strength | Ready-Mix |
| Garden and light structures | 1:2:4 | C20 | GEN1 or GEN2 |
| Domestic building and extensions | 1:2:3 | C25 | GEN3 |
| Reinforced work and difficult ground | 1:1.5:3 | C30 to C35 | RC25 or RC28 |
| Commercial and industrial | 1:1:2 | C40 and above | RC40 or designed |
Important: Sulphate-bearing ground overrides every ratio above, whatever the project type. Where a site investigation turns up sulphates, aFND-designateded mix takes the place of the standard grade, as covered further down.
Why 1:2:3 Is the Standard Ratio for Domestic Footings
A 1:2:3 mix reaches roughly C25, which covers single and two-storey work on ordinary ground, and that is why it appears on most domestic sites. The extra cement over a 1:2:4 mix raises the strength by around a third, and it improves cohesion at the same time, giving concrete that holds together as it goes into the trench rather than separating into a layer of stones with the paste draining away.
Older guidance often quotes 1:2:4 for footings, and that mix still suits garden walls and post bases carrying modest loads. Under a house wall, most engineers now specify the richer 1:2:3, or its ready-mix equivalent.
How Water Changes the Strength of Your Mix
Water plays a bigger role in concrete strength than many people realise. A mix that feels easier to pour is not always a better mix, and small changes in water content can have a noticeable effect on the finished result.
Why Extra Water Reduces Strength
- Water makes concrete easier to place and spread.
- Every extra litre lowers the strength the concrete can reach.
- Excess water eventually evaporates from the mix.
- That leaves tiny voids inside the concrete.
- Those voids create weak spots that cannot carry loads as effectively.
The Water-to-Cement Ratio to Aim For
- A good target is around half a litre of water for every kilogram of cement.
- This is known as a water-to-cement ratio of 0.5.
- Concrete at this ratio looks stiffer than many people expect.
- It also takes more effort to work into a trench or formwork.
What Happens When More Water Is Added
- Extra water makes placing concrete easier in the short term.
- The trade-off is lower compressive strength.
- Adding too much water can reduce strength by as much as a third.
- The original ratio is designed to achieve a specific performance level.
Pro Tip: Squeeze a handful of the fresh mix. It should hold its shape without slumping apart, and no water should run between your fingers. Concrete that collapses is carrying too much water.
Materials the Ratio Depends On
The recommended concrete mix ratios for foundations only achieve their intended strength when the materials match what they assume. A ratio only produces its stated strength when the materials match what it assumes. Two of the three parts get substituted more often than they should.
Sharp Sand Rather Than Builders’ Sand
Sharp sand has angular, gritty particles that lock together under load. Builders’ sand is soft and fine, intended for mortar, and its rounded grains slide past each other instead of interlocking, which is why the same ratio comes out noticeably weaker. The two look similar in a bag and behave nothing alike in a footing.
Coarse Aggregate at the Right Size
Footings normally take 20mm gravel or crushed stone. Smaller aggregate has more surface area to coat, so it pulls in extra cement and water and quietly shifts the ratio you thought you were mixing. Larger stone struggles to flow around reinforcement where any is present, leaving gaps beside the bars.
Ground Conditions That Override the Ratio
Even the right concrete mix ratio for foundations may need to change depending on the soil below the trench. Clay soils, made ground, and former industrial sites often contain sulphates, which react with ordinary cement and slowly break the concrete apart, softening and crumbling it from the outside in until the footing loses the strength holding the wall.
Ground of that kind calls for a sulphate-resisting mix rather than simply a stronger one:
- FND2 covers moderately aggressive ground, which applies to a large share of UK sites
- FND3 and FND4 handle higher sulphate levels, including brownfield and colliery land
- A ground investigation report determines which one applies, and Building Control will ask to see it
No visual check tells you what is in the soil, and the damage takes years to surface, which is why the report decides this rather than a look at the trench.
How Ready-Mix Grades Relate to Foundation Mix Ratios
Ready-mix suppliers quote designated grades such as GEN3 or RC28 instead of site mix ratios, but those grades correspond closely to the recommended concrete mix ratios for foundations discussed above. Ordering by grade removes the measuring error that creeps into a hand-mixed pour, since the batch is proportioned to a standard rather than judged by eye.
It also produces a delivery ticket recording the grade, the cement content, and the water ratio. Building Control uses that ticket as proof the concrete met the specification, which is difficult to demonstrate when the footing was mixed on site by the bucket.
FAQs
What is the standard concrete mix ratio for footings?
A 1:2:3 mix by volume, meaning one part cement, two parts sharp sand, and three parts coarse aggregate. That gives roughly C25 strength, which suits most domestic strip footings and trench fill.
Is a 1:2:4 mix strong enough for footings?
It reaches around C20, which is adequate for garden walls, fence posts, and shed bases. Under a load-bearing house wall, engineers typically specify the richer 1:2:3 mix or its ready-mix equivalent.
What ratio do commercial footings need?
Heavier commercial and industrial work generally calls for 1:1:2, giving C40 or above, though the exact grade comes from the structural engineer. Reinforced bases sit a step down at roughly 1:1.5:3.
What is the cement to ballast ratio for footings?
Ballast combines sand and gravel already, so one part cement to five parts ballast approximates a 1:2:4 mix. One part cement to four parts ballast lands nearer a 1:2:3.
Does adding more cement make concrete stronger?
Up to a point. Beyond the ratios above, extra cement raises the cost, and the shrinkage without adding useful strength, and the water-to-cement ratio limits what the mix can reach.
Getting the Right Mix for Your Project
The right concrete mix ratio for foundations comes down to matching the proportions to the load, keeping the water to around half a litre per kilogram of cement, and knowing what the ground beneath the trench contains. Once Building Control or an engineer has named a grade, mixing to it consistently is what turns a specification into concrete that lasts.
Holding that consistency by hand is harder than it sounds. Every barrow needs the same measuring, and a single slack batch leaves a soft band running through the footing that gives way before the sound concrete around it. Pro-Mix Concrete has been supplying London builders and homeowners for over 20 years, mixing everything from C10 to C40 to the grade an engineer has set. Their concrete calculator works out how much you need before you order.
